AJAX STEP 11 - Map

★ 프로젝트 생성

• Dynamic Web Project
• MapTest
• context : map



★ 카카오맵 API

• https://developers.kakao.com/

Kakao Developers

•  https://apis.map.kakao.com/
• https://apis.map.kakao.com/web/guide/
• https://www.flaticon.com/kr/free-icons/map-marker/2?k=1684393535380&log-in=google
• https://fonts.google.com/icons?selected=Material+Symbols+Outlined:liquor:FILL@0;wght@400;GRAD@0;opsz@48&icon.query=bar



■ 필요 파일

- "com.test.map"
    - "Map.java"
    - "MapDAO.java"
    - "PlaceDTO.java"
    - "CategoryDTO.java"

- webapp > WEB-INF > "views"
	- "map.jsp"



■ 필요 라이브러리

jackson
json
jstl
lombok
myLibrary
Ojdbc



■ 데이터베이스

-- 카테고리
create table tblPlaceCategory (
    seq number primary key,
    name varchar2(100) not null,
    marker varchar2(50) not null
);


-- 장소 등록
create table tblPlace (
    seq number primary key,         -- 번호(PK)
    name varchar2(100) not null,    -- 장소
    lat number not null,                -- 위도
    lng number not null,               -- 경도
    cseq number not null references tblPlaceCategory(seq)
);

create sequence seqPlaceCategory;
create sequence seqPlace;

insert into tblPlaceCategory values (seqPlaceCategory.nextVal, '맛집', 'default');
insert into tblPlaceCategory values (seqPlaceCategory.nextVal, '카페', 'default');
insert into tblPlaceCategory values (seqPlaceCategory.nextVal, '운동', 'default');
insert into tblPlaceCategory values (seqPlaceCategory.nextVal, '빵집', 'default');
insert into tblPlaceCategory values (seqPlaceCategory.nextVal, '술집', 'default');





■ 소스 코드

• Map.java

package com.test.map;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/map.do")
public class Map extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Map.java

		MapDAO dao = new MapDAO();

		List<PlaceDTO> mlist = dao.mlist();		//장소
		List<CategoryDTO> clist = dao.clist();  //카테고리

		setIcons(mlist);

		req.setAttribute("mlist", mlist);
		req.setAttribute("clist", clist);

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/map.jsp");
		dispatcher.forward(req, resp);
	}

	private void setIcons(List<PlaceDTO> mlist) {

		for (PlaceDTO dto : mlist) {

			if (dto.getCesq().equals("1")) {
				dto.setCicon("restaurant_menu");
			} else if (dto.getCesq().equals("2")) {
				dto.setCicon("local_cafe");
			} else if (dto.getCesq().equals("3")) {
				dto.setCicon("fitness_center");
			} else if (dto.getCesq().equals("4")) {
				dto.setCicon("breakfast_dining");
			} else if (dto.getCesq().equals("5")) {
				dto.setCicon("liquor");
			}

		}
	}

	@Override
	protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		req.setCharacterEncoding("UTF-8");

		String name = req.getParameter("name");
		String category = req.getParameter("category");
		String lat = req.getParameter("lat");
		String lng = req.getParameter("lng");

		PlaceDTO dto = new PlaceDTO();

		dto.setName(name);
		dto.setCesq(category);
		dto.setLat(lat);
		dto.setLng(lng);


		MapDAO dao = new MapDAO();

		int result = dao.add(dto);

		if (result == 1) {
			resp.sendRedirect("/map/map.do");
		} else {
			PrintWriter writer = resp.getWriter();
			writer.print("<script>alert('failed');history.back();</scirpt>");
			writer.close();
		}

	}

}



• PlaceDTO.java

package com.test.map;

import lombok.Data;

@Data
public class PlaceDTO {
	private String seq;
	private String name;
	private String lat;
	private String lng;

	private String cesq;
	private String cicon;
}



• CategoryDTO.java

package com.test.map;

import lombok.Data;

@Data
public class CategoryDTO {
	private String seq;
	private String name;
	private String marker;
}



• MapDAO.java

package com.test.map;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.Statement;
import java.util.ArrayList;
import java.util.List;

import com.test.my.DBUtil;

public class MapDAO {

	private Connection conn;
	private Statement stat;
	private PreparedStatement pstat;
	private ResultSet rs;

	public MapDAO() {
		this.conn = DBUtil.open();
	}

	public List<CategoryDTO> clist() {

		try {

			String sql = "select * from tblPlaceCategory order by name asc";

			stat = conn.createStatement();
			rs = stat.executeQuery(sql);

			List<CategoryDTO> clist = new ArrayList<CategoryDTO>();

			while (rs.next()) {

				CategoryDTO dto = new CategoryDTO();

				dto.setSeq(rs.getString("seq"));
				dto.setName(rs.getString("name"));
				dto.setMarker(rs.getString("marker"));

				clist.add(dto);

			}

			return clist;

		} catch (Exception e) {
			e.printStackTrace();
		}


		return null;
	}

	public int add(PlaceDTO dto) {

		try {

			String sql = "insert into tblPlace (seq, name, lat, lng, cseq) values (seqPlace.nextVal, ?, ?, ?, ?)";

			pstat = conn.prepareStatement(sql);
			pstat.setString(1, dto.getName());
			pstat.setString(2, dto.getLat());
			pstat.setString(3, dto.getLng());
			pstat.setString(4, dto.getCesq());

			return pstat.executeUpdate();

		} catch (Exception e) {
			e.printStackTrace();
		}

		return 0;
	}

	public List<PlaceDTO> mlist() {

		try {

			String sql = "select * from tblPlace order by name asc";

			stat = conn.createStatement();
			rs = stat.executeQuery(sql);

			List<PlaceDTO> mlist = new ArrayList<PlaceDTO>();

			while (rs.next()) {

				PlaceDTO dto = new PlaceDTO();

				dto.setSeq(rs.getString("seq"));
				dto.setName(rs.getString("name"));
				dto.setLat(rs.getString("lat"));
				dto.setLng(rs.getString("lng"));
				dto.setCesq(rs.getString("cseq"));

				mlist.add(dto);

			}

			return mlist;

		} catch (Exception e) {
			e.printStackTrace();
		}

		return null;
	}



}



• map.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

	#main {
		display: flex;
		align-items: flex-start;
	}

	#map {
		border: 1px solid #CCC;
		width: 550px;
		height: 400px;
	}

	#list {
		width: 200px;
		margin-top: 0;
	}

	#add {

	}

</style>
</head>
<body>

	<h1>Map <small>Place</small></h1>

	<div id="main">
      <div id="map">지도</div>
      <table id="list">
      	<c:forEach items="${mlist}" var="dto">
         <tr>
            <td style="display: flex; cursor:pointer;" data-lat="${dto.lat}" data-lng="${dto.lng}">
            	<span class="material-symbols-outlined">${dto.cicon}</span>
            	<div style="margin-top: 3px; margin-left:5px;">${dto.name}</div>
            </td>
         </tr>
         </c:forEach>
      </table>
   </div>

	<hr>

	<form method="POST" action="/map/map.do">
		<table id="add" class="vertical">
			<tr>
				<th>장소명</th>
				<td><input type="text" name="name" id="name" class="long"></td>
			</tr>
			<tr>
				<th>카테고리</th>
				<td>
					<select name="category" id="category">
					<c:forEach items="${clist}" var="cdto">
						<option value="${cdto.seq}">${cdto.name}</option>
					</c:forEach>
					</select>
				</td>
			</tr>
			<tr>
				<th>위치</th>
				<td><div id="position"></div></td>
			</tr>
		</table>

	<div>
		<input type="submit" value="등록하기" id="btn">
	</div>

	<input type="hidden" name="lat" id="lat">
	<input type="hidden" name="lng" id="lng">
	</form>
<script type="text/javascript" src="//dapi.kakao.com/v2/maps/sdk.js?appkey=7b34a8317f5befe832f9eefe047ae818"></script>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

	var container = document.getElementById('map'); //지도를 담을 영역의 DOM 레퍼런스

	var options = { //지도를 생성할 때 필요한 기본 옵션
		center: new kakao.maps.LatLng(37.4993, 127.0331), //지도의 중심좌표.
		level: 3 //지도의 레벨(확대, 축소 정도)
	};

	var map = new kakao.maps.Map(container, options); //지도 생성 및 객체 리턴

	let m = null;

	kakao.maps.event.addListener(map, 'click', function(event) {

		if (m != null){
			m.setMap(null);
		}

		$('#position').text(event.latLng);

		$('#lat').val(event.latLng.getLat());
		$('#lng').val(event.latLng.getLng());

		m = new kakao.maps.Marker({
			position: event.latLng
		});

		m.setMap(map);

	});

	$('#list td').click(function() {

		//alert($(this).data('lat'));

		if (m != null){
			m.setMap(null);
		}

		let p = new kakao.maps.LatLng($(this).data('lat'), $(this).data('lng'));

		m = new kakao.maps.Marker({
			position: p
		});

		m.setMap(map);

		map.panTo(p);

		$('#list td').css('background-color', 'transparent');
		$(this).css('background-color', 'gold');

	});

</script>
</body>
</html>

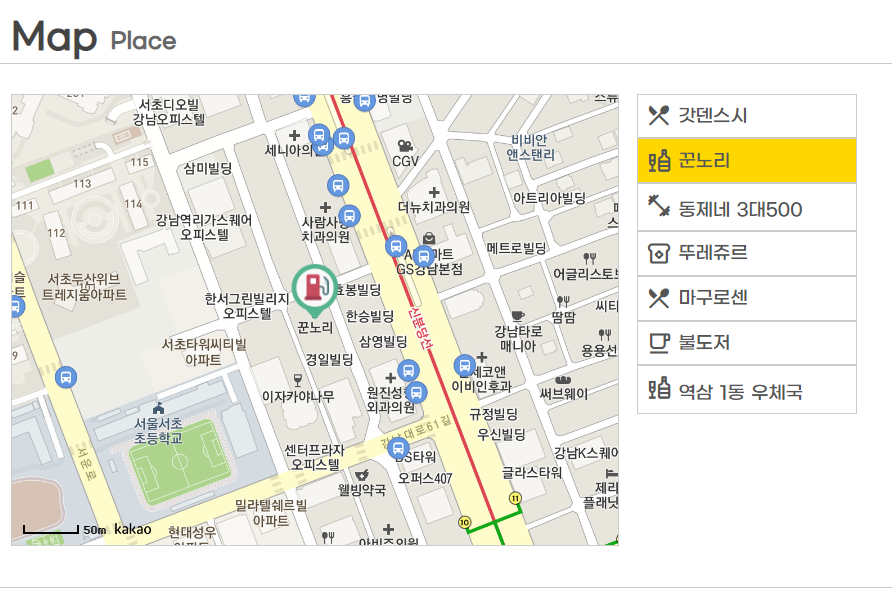

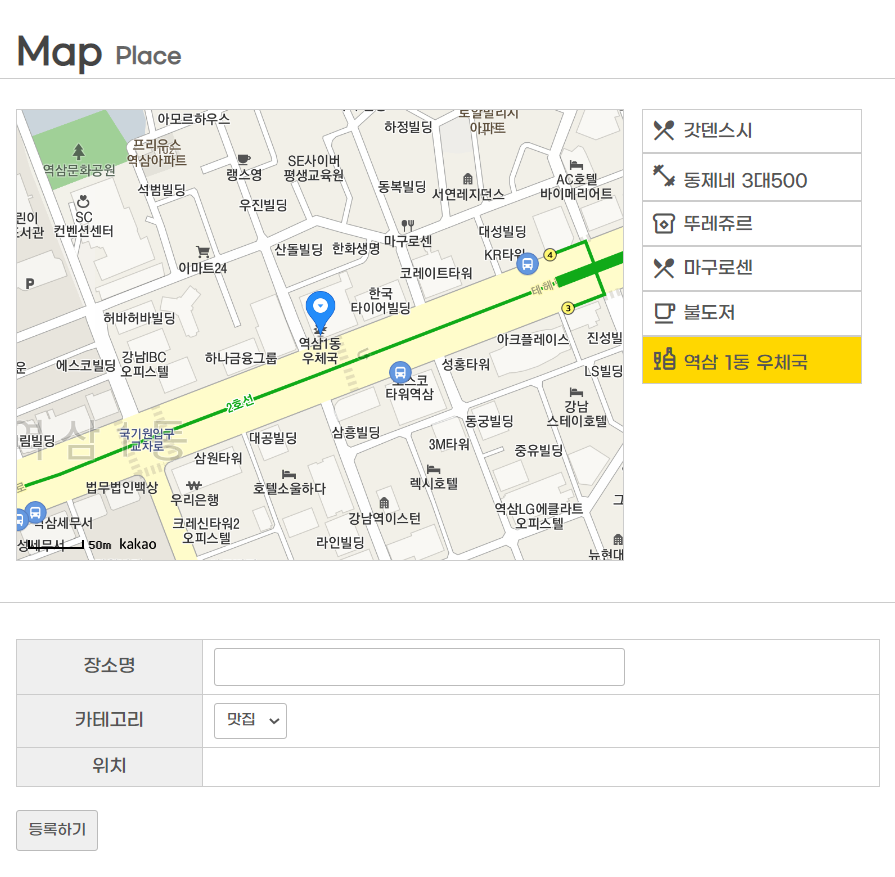

■ 실행 결과

실행 결과

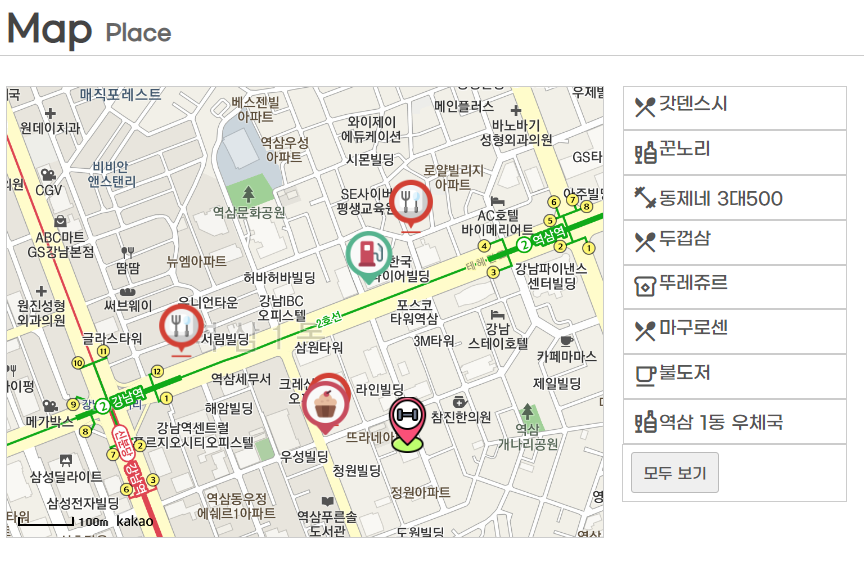

• 마커를 튜닝

• 모두 보기 기능 추가

모두보기

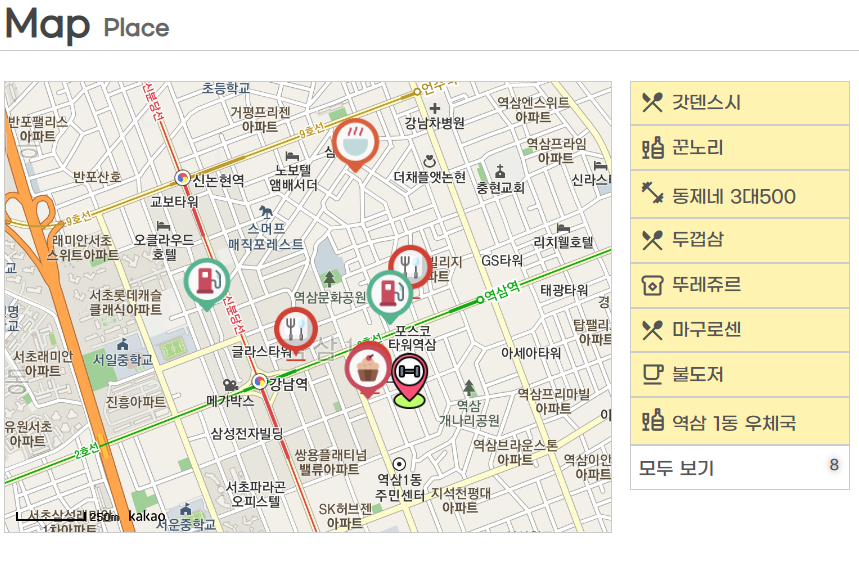

• 카운트 하여, 마커가 찍히는 색상 표시

현재 지도에 찍히는 마커가 존재하면, count 및 색상
