Servlet + JSP STEP 3 - 이미지 뷰어(갤러리)

★ 이미지 뷰어(갤러리)

• CR
• 유저 1명
• 사진(이미지) + 이름 + 날짜 + 설명 등 ...
• 파일 업로드 + DB 연동

★ VO vs DTO

• 데이터를 저장하는 객체
• 자바 클래스
• VO : Value Object
  • DB에서 가져온 데이터를 보관하는 용도
  • 읽기 전용 > 리터럴(상수)
• DTO : Data Transfer Object
  • 계층간에 데이터를 전송할 때 사용되는 도구(택배 상자)
  • 수정이 가능하다.
• 목록보기 : DB > DAO > (VO) > 컨트롤러 > (VO) > JSP
• 글쓰기 : JSP > 컨트롤러 > (DTO) > DAO > DB



■ 필요 파일

- com.test.file > "List.java" //시작 페이지
				> "Add.java"
				> "AddOk.java"
				> "View.java"
				> "FileDAO.java"
				> "FileDTO.java"
               	> "Edit.java"
                > "EditOk.java"
                > "DelOk.java"

- views > "list.jsp"
		> "add.jsp"
		> "addok.jsp"
		> "view.jsp"
        > "edit.jsp"
        > "editok.jsp"
        > "delok.jsp"

- views > "inc" > "header.jsp"



■ DB 파일 생성

• script.sql
• 1. 파일을 직접 DB에 저장 > 바이너리(이진 파일) 저장
• 2. 파일은 하드에 저장 > DB에는 파일명(텍스트)만 저장 > 주로 사용!!

create table tblFile (
    seq number primary key,        --번호(PK)
    name varchar2(30) not null,     -- 작성자
    filename varchar2(50) not null, -- 파일명(하드에 저장되는 이름)
    regdate date default sysdate not null --날짜
);

create sequence seqFile;



■ FileDTO.java : 데이터를 저장하는 용도로 사용

• 멤버변수, Getter, Setter

package com.test.file;

public class FileDTO {

	private String seq;
	private String name;
	private String filename;
	private String regdate;
	public String getSeq() {
		return seq;
	}
	public void setSeq(String seq) {
		this.seq = seq;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getFilename() {
		return filename;
	}
	public void setFilename(String filename) {
		this.filename = filename;
	}
	public String getRegdate() {
		return regdate;
	}
	public void setRegdate(String regdate) {
		this.regdate = regdate;
	}



}



■ FileDAO.java : 데이터 액세스 오브젝트, DB 작업 담당자

package com.test.file;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.Statement;
import java.util.ArrayList;
import java.util.List;

import com.test.my.DBUtil;

//DAO, Data Access Object
//- DB 작업 담당자
public class FileDAO {

	private Connection conn;
	private Statement stat;
	private PreparedStatement pstat;
	private ResultSet rs;

	public FileDAO() {
		this.conn = DBUtil.open();
	}

	public int add(FileDTO dto) {

		try {

			String sql = "insert into tblFile (seq, name, filename, regdate) values (seqFile.nextVal, ?, ?, default)";

			pstat = conn.prepareStatement(sql);

			pstat.setString(1, dto.getName());
			pstat.setString(2,  dto.getFilename());

			return pstat.executeUpdate();

		} catch (Exception e) {
			e.printStackTrace();
		}
		return 0;
	}

	public List<FileDTO> list() {

		try {

			String sql = "select seq, filename from tblFile order by seq desc";

			stat = conn.createStatement();

			rs = stat.executeQuery(sql);

			List<FileDTO> list = new ArrayList<FileDTO>();

			//ResultSet > (복사) > ArrayList
			while (rs.next()) {

				//레코드 1줄 > FileDTO 1개
				FileDTO dto = new FileDTO();
				dto.setSeq(rs.getString("seq"));
				dto.setFilename(rs.getString("filename"));

				list.add(dto);

			}

			return list;

		} catch (Exception e) {
			e.printStackTrace();
		}
		return null;
	}

	public FileDTO get(String seq) {

		try {

			String sql = "select * from tblFile where seq = ?";

			pstat = conn.prepareStatement(sql);

			pstat.setString(1, seq);

			rs = pstat.executeQuery();

			if (rs.next()) {

				//레코드 1줄 > DTO 1개
				FileDTO dto = new FileDTO();

				dto.setSeq(rs.getString("seq"));
				dto.setName(rs.getString("name"));
				dto.setFilename(rs.getString("filename"));
				dto.setRegdate(rs.getString("regdate"));

				return dto;
			}

		} catch (Exception e) {
			e.printStackTrace();
		}

		return null;
	}

	public int edit(FileDTO dto) {

		try {

			String sql = "";

			if(dto.getFilename() != null && !dto.getFilename().equals("")) {

				sql = "update tbl File set name = ?, filename = ? where seq = ?";

				pstat = conn.prepareStatement(sql);
				pstat.setString(1,dto.getName());
				pstat.setString(2,dto.getFilename());
				pstat.setString(3,dto.getSeq());

			} else {
				sql = "update tblFile set name = ? where seq = ?";
				pstat = conn.prepareStatement(sql);
				pstat.setString(1,dto.getName());
				pstat.setString(2,dto.getSeq());

			}

			return pstat.executeUpdate();


		} catch (Exception e) {
			e.printStackTrace();
		}

		return 0;
	}

}



■ List.java : DB 작업 > DAO 위임 > select ...

package com.test.file;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/list.do")
public class List extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//List.java

		//1. DB 작업 > DAO 위임 > select...
		//2. 결과 반환(List<FileDTO>)
		//3. JSP 호출하기

		FileDAO dao = new FileDAO();
		java.util.List<FileDTO> list = dao.list();

		req.setAttribute("list", list);

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/list.jsp");
		dispatcher.forward(req, resp);
	}

}

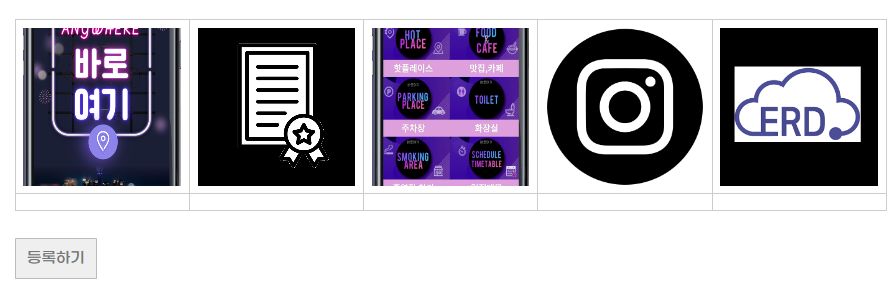

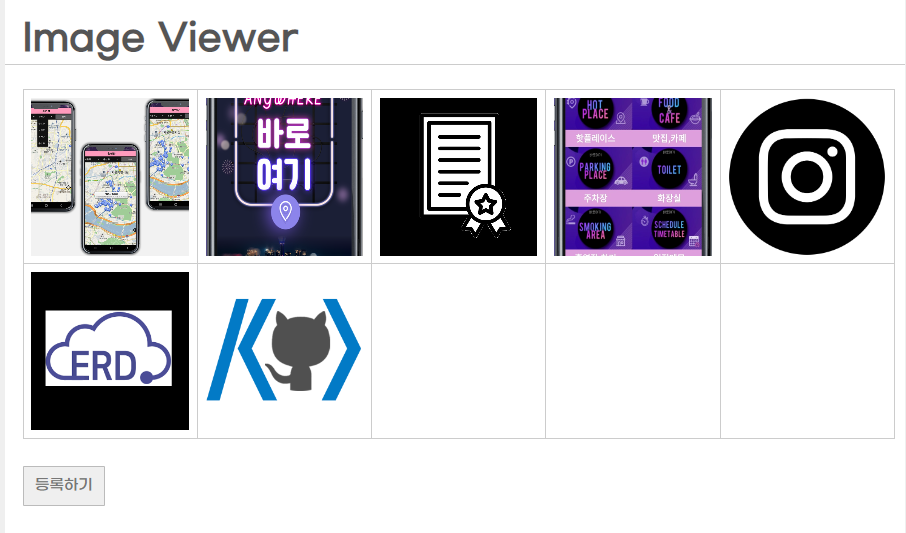

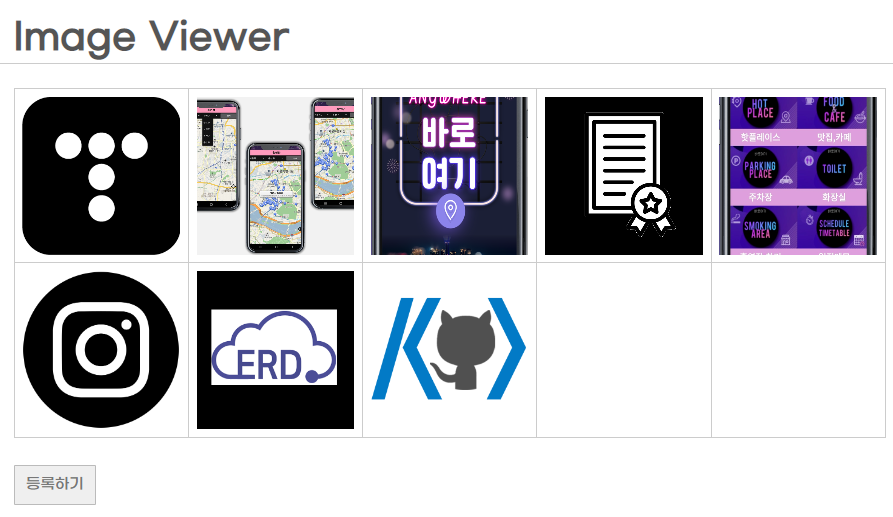

■ List.jsp : 리스트 페이지 UI 작업 및 실제적 구현

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Image Viewer</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

	img {
		display:block;
		width : 140px;
		height : 140px;
		margin : 0 auto;
		object-fit : cover;
		cursor : pointer;
	}

</style>
</head>
<body>

	<h1>Image Viewer</h1>

	<table>
		<tr>
			<c:forEach items="${list}" var="dto" varStatus="status">

			<td><img src="/file/files/${dto.filename}" onclick="view(${dto.seq});"></td>

			<c:if test="${status.count % 5 == 0}">
				</tr>
				<tr>
			</c:if>

			</c:forEach>

			<c:forEach var="i" begin="1" end="${5- list.size() % 5}">
				<td></td>
			</c:forEach>

		</tr>
	</table>

	<div>
		<input type="button" value="등록하기" onclick="location.href='/file/add.do';">
	</div>



<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

	function view(seq) {

		location.href = '/file/view.do?seq=' + seq;

	}
</script>
</body>
</html>



■ add.java : 등록 servlet

package com.test.file;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/add.do")
public class Add extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Add.java

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/add.jsp");
		dispatcher.forward(req, resp);
	}

}

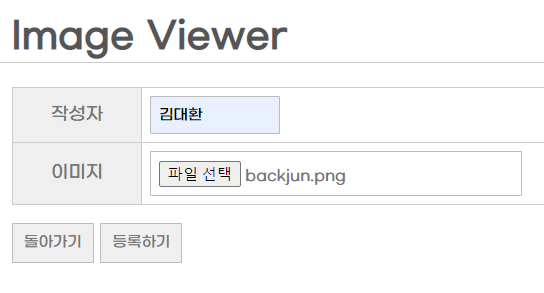

■ add.jsp : 등록 jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>ImageViewer</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

</style>
</head>
<body>

	<h1>Image Viewer</h1>

	<form method="POST" action="/file/addok.do" enctype="multipart/form-data">
	<table>
		<tr>
			<th>작성자</th>
			<td><input type="text" name="name" class="short" required></td>
		</tr>
		<tr>
			<th>이미지</th>
			<td><input type="file" name="attach" required accept=".gif, .png, .jpg, .jpeg"></td>
		</tr>
	</table>

	<div>
		<input type="button" value="돌아가기" onclick="history.back();">
		<input type="submit" value="등록하기">
	</div>
	</form>

<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>
</script>
</body>
</html>



■ AddOk.java

package com.test.file;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.oreilly.servlet.MultipartRequest;
import com.oreilly.servlet.multipart.DefaultFileRenamePolicy;

@WebServlet("/addok.do")
public class AddOk extends HttpServlet {

	@Override
	protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//AddOk.java

		//1. 파일 업로드 처리
		//2. DB 처리

		String name = "";
		String filename = "";

		try {

			MultipartRequest multi = new MultipartRequest(
								req,
								req.getRealPath("/files"),
								1034 *1024 *100,
								"UTF-8",
								new DefaultFileRenamePolicy()
					);

			System.out.println(req.getRealPath("/files"));

			filename = multi.getFilesystemName("attach");
			name = multi.getParameter("name");

		} catch (Exception e) {
			// TODO: handle exception
		}

		//2.
		FileDAO dao = new FileDAO();

		FileDTO dto = new FileDTO();
		dto.setName(name);
		dto.setFilename(filename);

		int result = dao.add(dto); //성공(1), 실패(0)

		req.setAttribute("result", result);

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/addok.jsp");
		dispatcher.forward(req, resp);
	}

}





■ addok.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

</style>
</head>
<body>



<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

	<c:if test="${result == 1}">
		location.href = '/file/list.do';
	</c:if>

	<c:if test="${result == 0}">
		alert('failed');
		history.back();
	</c:if>
</script>
</body>
</html>



■ View.java

package com.test.file;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/view.do")
public class View extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//View.java
		//- view.do?seq=12

		//1. 번호 가저오기
		//2. DB 작업 > DAO 위임 > select where seq = 12
		//3. 결과 반환 > JSP 호출하기

		String seq = req.getParameter("seq");

		FileDAO dao = new FileDAO();

		FileDTO dto = dao.get(seq);

		req.setAttribute("dto", dto);


		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/view.jsp");
		dispatcher.forward(req, resp);
	}

}

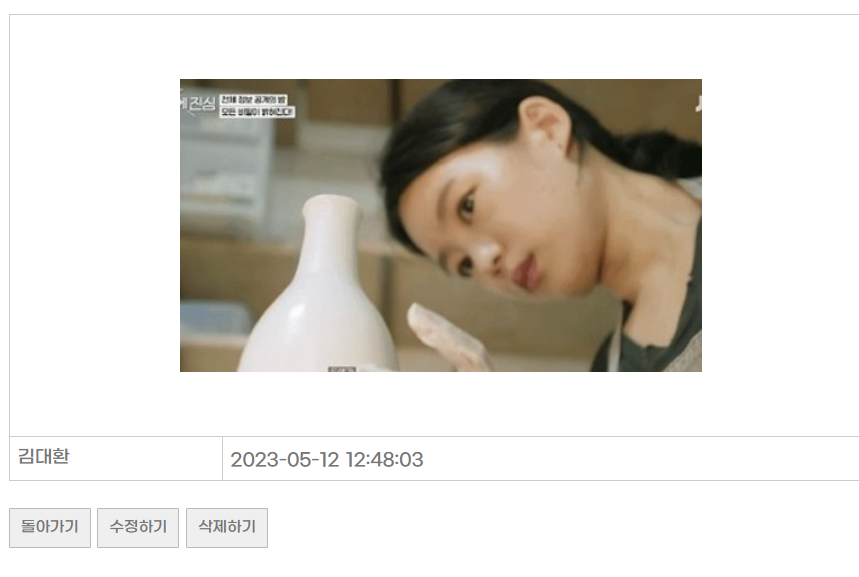

■ view.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

	img {
		display : block;
		margin : 50px auto;
		max-width : 750px;
	}

</style>
</head>
<body>
	<h1>Image Viewer</h1>

	<table>
		<tr>
			<td colspan="2"><img src="/file/files/${dto.filename}"></td>
		</tr>
		<tr>
			<td>${dto.name}</td>
			<td>${dto.regdate}</td>
		</tr>
	</table>

	<div>
		<input type="button" value="돌아가기"
			onclick = "location.href='/file/list.do';">
		<input type="button" value="수정하기"
			onclick = "location.href='/file/edit.do';">
		<input type="button" value="삭제하기"
			onclick = "location.href='/file/del.do';">
	</div>


<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>
</script>
</body>
</html>



■ Edit.java

package com.test.file;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/edit.do")
public class Edit extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Edit.java
		//1. 번호 가져오기(seq)
		//2. DB 작업 > DAO 위임 > select
		//3. 결과 반환 > JSP 호출하기

		String seq = req.getParameter("seq");

		FileDAO dao = new FileDAO();

		FileDTO dto = dao.get(seq);

		req.setAttribute("dto", dto);

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/edit.jsp");
		dispatcher.forward(req, resp);
	}

}



■ edit.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>ImageViewer</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

</style>
</head>
<body>

	<h1>Image Viewer</h1>

	<form method="POST" action="/file/editok.do" enctype="multipart/form-data">
	<table>
		<tr>
			<th>작성자</th>
			<td><input type="text" name="name" class="short" required value="${dto.name}"></td>
		</tr>
		<tr>
			<th>이미지</th>
			<td>
				<input type="file" name="attach" required>
				<span>${dto.filename}</span>
			</td>
		</tr>
	</table>

	<div>
		<input type="button" value="돌아가기" onclick="history.back();">
		<input type="submit" value="수정하기">
	</div>
	</form>

<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

	$('input[name=attach]').change(function() {

		if ($(this).val() != '') {

			$(this).next().css('text-decoration', 'line-through');
		}else {
			$(this).next().css('text-decoration', 'none');
		}

	});

</script>
</body>
</html>



■ EditOk.java

package com.test.file;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.oreilly.servlet.MultipartRequest;
import com.oreilly.servlet.multipart.DefaultFileRenamePolicy;

@WebServlet("/editok.do")
public class EditOk extends HttpServlet {

	@Override
	protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//EditOk.java

		//1. 데이터 가져오기
		//2. DB 작업 > DAO 위임 > update
		//3. 첨부 파일 교체

		String name = "";
		String filename = "";

		try {

			MultipartRequest multi = new MultipartRequest(
					req,
					req.getRealPath("/files"),
					1034 *1024 *100,
					"UTF-8",
					new DefaultFileRenamePolicy()
					);

			System.out.println("attach : " + multi.getFilesystemName("attach"));

			name = multi.getParameter("name");
			filename = multi.getFilesystemName("attach");

		} catch (Exception e) {
			e.printStackTrace();
		}

		FileDAO dao = new FileDAO();

		FileDTO dto = new FileDTO();

		dto.setName(name);
		dto.setFilename(filename);

		int result = dao.edit(dto);

		req.setAttribute("result", result);

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/editok.jsp");
		dispatcher.forward(req, resp);
	}

}



■ DelOk.java

package com.test.file;

import java.io.File;
import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/delok.do")
public class DelOk extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//DelOk.java
		//1. 데이터 가져오기(seq)
		//3. 파일 삭제
		//2. DB 작업 > DAO 위임 > delete

		String seq = req.getParameter("seq");

		FileDAO dao = new FileDAO();

		//사진 삭제 > 사진명?
		FileDTO dto = dao.get(seq);

		try {

			File file = new File(req.getRealPath("/files") + "\\" + dto.getFilename());

			file.delete();

		} catch (Exception e) {
			e.printStackTrace();
		}

		int result = dao.remove(seq);

		req.setAttribute("result", result);

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/delok.jsp");
		dispatcher.forward(req, resp);
	}

}



■ delok.java

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

</style>
</head>
<body>



<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

	<c:if test="${result == 1}">
		location.href = '/file/list.do';
	</c:if>

	<c:if test="${result == 0}">
		alert('failed');
		history.back();
	</c:if>
</script>
</body>
</html>



■ 실행 결과

• 첫 페이지

• 등록하기

• 등록 완료

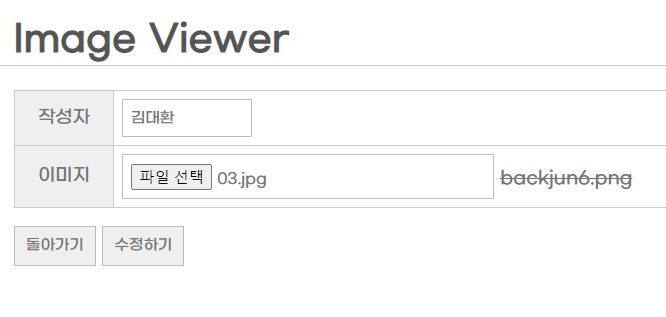

• 수정하기

• 수정완료

• 삭제 하기
