★ 실제 AJAX 구현

1. 순수 자바스크립트(원래 Ajax)
2. jQuery Ajax (가장 많이 사용)
3. ES6 > Promise, await

■ 서버 페이지(Servlet/JSP)를 만들 때

1. 브라우저로 요청할 페이지?
2. Ajax로 요청할 페이지?

■ 1. 순수 자바스크립트(원래 Ajax)

필요 파일

- 페이지 > 보임
- com.test.ajax > "Ex05.java"
- com.test.ajax > "Ex05Data.java"

- 데이터(처리) > 안보임
- views > "ex05.jsp"
- views > "ex05data.jsp"
- webapp > "ex05.txt"

■ 1. 소스 코드

Ex05.java

package com.test.ajax;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/ex05.do")
public class Ex05 extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Ex05.java

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/ex05.jsp");
		dispatcher.forward(req, resp);
	}

}

ex05.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

</style>
</head>
<body class="narrow">

	<h1>Ajax 요청</h1>

	<div>
		<input type="button" value="확인" id="btn1">
		<hr>
		<div id="div1"></div>
	</div>
	<hr>

	<div>
		<input type="text" id="txt2">
		<input type="button" value="전송" id="btn2">
		<hr>
		<div id="div1"></div>
	</div>

	<hr>
	<div>
		다른 작업 : <input type="text">
	</div>


<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

	$('#btn1').click( () => {

		const ajax = new XMLHttpRequest();

		ajax.onreadystatechange = function() {
			if (ajax.readyState == 4 && ajax.status == 200) {
				//요청한 데이터를 올바르게 수신할 수 있는 순간!!

				$('#div1').text(ajax.responseText);
				alert(ajax.responseText);

			}
		};

// 		ajax.open('GET', '/ajax/ex05.txt');
		ajax.open('GET', '/ajax/ex05data.do');

		ajax.send(); //연결 + 접속 + 요청

	});

	$('#btn2').click( ()=> {

		const ajax = new XMLHttpRequest();

		//ajax > (데이터) > 서버
		//1. GET > QueryString
		//2. POST

		ajax.open('GET', '/ajax/ex05data.do?txt2=' + $('#txt2').val());

		ajax.send();

	});
</script>
</body>
</html>

Ex05Data.java

package com.test.ajax;

import java.io.IOException;
import java.io.PrintWriter;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/ex05data.do")
public class Ex05Data extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Ex05Data.java
		//System.out.println("서블릿 호출됨.");

		//Ajax 응답
		//- JSP 페이지 < (더편함) < PrintWriter
		//PrintWriter writer = resp.getWriter();

		//writer.write("200");
		//writer.close();

//		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/ex05data.jsp");
//		dispatcher.forward(req, resp);

		String txt2 = req.getParameter("txt2");
		System.out.println("GET : " + txt2);

	}

}

ex05data.jsp : Ajax에서는 좋지 않은 예

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%><%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>200

■ 실행 결과

데이터 받기

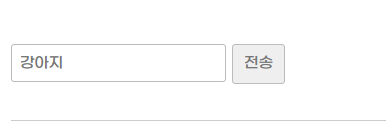

데이터 전송

■ 2. jQuery Ajax (가장 많이 사용)

필요 파일들

- com.test.ajax > "Ex06.java"
- views > "ex06.jsp"

- com.test.ajax > "Ex06Data.java"

■ 2. 소스코드

Ex06.java

package com.test.ajax;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/ex06.do")
public class Ex06 extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Ex06.java

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/ex06.jsp");
		dispatcher.forward(req, resp);
	}

}

Ex06Data.java

package com.test.ajax;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.Calendar;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/ex06data.do")
public class Ex06Data extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Ex06Data.java

//		String txt1 = req.getParameter("txt1");
//		System.out.println("txt1 : " + txt1);

		//5초 동안 업무를 잠시 중단...
		try {
			Thread.sleep(5000);
		} catch (Exception e) {
			e.printStackTrace();
		}

		Calendar now = Calendar.getInstance();

		PrintWriter writer = resp.getWriter();
		writer.write("ajax:" + String.format("%tT", now));
		writer.close();

	}

}

ex06.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

</style>
</head>
<body class="narrow">
   <!-- ex06.jsp -->
   <h1>Ajax <small>jQuery</small></h1>

   <div>
      <input type="text" id="txt1">
      <input type="button" value="확인" id="btn1">
      <div id="div1"></div>
   </div>

<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

   $('#btn1').click(()=>{

      //$(검색 태그).메소드()

      //ajax 요청
      //- ajax.send();
      $.ajax({

         //페이지 요청 정보
         type: 'GET',
         url: '/ajax/ex06data.do',

         //데이터 전송(QueryString + GET/POST)
         data: 'txt1=' + $('#txt1').val(),

         //데이터 수신
         success: function(result) {
            $('#div1').text(result);
         },

         //ajax 예외 처리
         error: function(a,b,c) {
            console.log(a,b,c);
         }

      });

   });

   $('#btn1').click(()=>{

      //Ajax, 비동기(async)

      //네트워크 통신
      //1. 동기 통신
      //2. 비동기 통신

      $.ajax({
    	 type: 'GET',
    	 url : '/ajax/ex06data.do',
    	 async : true, //비동기(true), 동기(false)
    	 success : function(result) {
    		 $('#div1').text(result);
    	 },
    	 error : function(a,b,c) {
    		 console.log(a,b,c);
    	 }
      });

   });

</script>
</body>
</html>

■ 3. 다양한 방법 통신

필요 파일

- com.test.ajax > "Ex07.java"
- vies > "ex07.jsp"

- com.test.ajax > "Ex07Data.java"

■ 3. 소스코드

Ex07.java

package com.test.ajax;

import java.io.IOException;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/ex07.do")
public class Ex07 extends HttpServlet {

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

		//Ex07.java

		RequestDispatcher dispatcher = req.getRequestDispatcher("/WEB-INF/views/ex07.jsp");
		dispatcher.forward(req, resp);
	}

}

Ex07Data.java

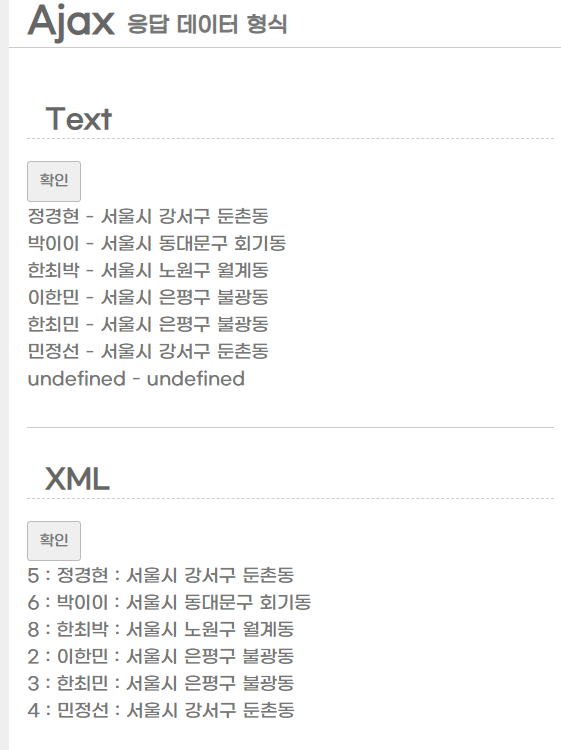

- m1~m2 : Text 형식
- m3~m4 : XML 형식

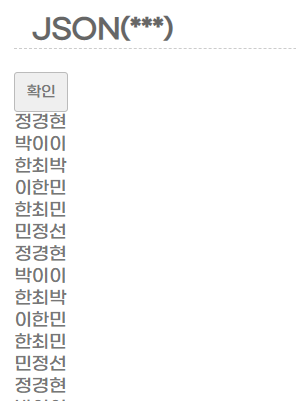

- m5~m6 : JSON 형식

package com.test.ajax;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/ex07data.do")
public class Ex07Data extends HttpServlet {

   @Override
   protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

      //Ex07Data.java

      String type = req.getParameter("type");

      if (type.equals("1")) {
         m1(req, resp);
      } else if (type.equals("2")) {
         m2(req, resp);
      } else if (type.equals("3")) {
         m3(req, resp);
      } else if (type.equals("4")) {
         m4(req, resp);
      } else if (type.equals("5")) {
         m5(req, resp);
      } else if (type.equals("6")) {
         m6(req, resp);
      }

   }

   private void m6(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

	   AjaxDAO dao = new AjaxDAO();

	   List<AddressDTO> list = dao.listAddress();

	   /*

	     [
	     	{
	     		"seq" : "1",
	     		"name" : "이름",
	     		"age" : 20,
	     		"tel" : "010"
	     		"address" : "주소"
	     	}
	     	,
	     	{
	     		"seq" : "1",
	     		"name" : "이름",
	     		"age" : 20,
	     		"tel" : "010"
	     		"address" : "주소"
	     	},
	     ]

	   */

	   resp.setContentType("application/json");
	   resp.setCharacterEncoding("UTF-8");

	   PrintWriter writer = resp.getWriter();

	   String temp = "";

	   temp += ("[");

	   for (AddressDTO dto : list) {

		   temp += "{";
         temp += String.format("\"seq\": \"%s\",", dto.getSeq());
         temp += String.format("\"name\": \"%s\",", dto.getName());
         temp += String.format("\"age\": %s,", dto.getAge());
         temp += String.format("\"tel\": \"%s\",", dto.getTel());
         temp += String.format("\"address\": \"%s\"", dto.getAddress());
         temp += "}";
         temp += ",";
      }

	   temp = temp.substring(0, temp.length()-1);

	   temp += "]";

	   writer.print(temp);

	   writer.close();
   }

   private void m5(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

	   AjaxDAO dao = new AjaxDAO();
	   ResearchDTO dto = dao.getResearch(1);

	   /*

	    	JSON
	    	- 키와 값을 쌍옴표로 표기한다.
	    	- 메소드는 표시 불가

	    	{
	    		"키" : "값",
	    		"키" " "값"
	    	}

	    	[ 10, 20, 30 ]

	    	[
	    		{
	    			"키" : "값"
	    			"키" : "값"
	    		}
	    	]

	    	{
	    		"question" : "질문"
	    	}

	    */


	    resp.setContentType("application/json");
	    resp.setCharacterEncoding("UTF-8");

	   	PrintWriter writer = resp.getWriter();

	   	writer.print("{");
	   	writer.printf("'question' : \"%s\"", dto.getQuestion());
	   	writer.print("}");

	   	writer.close();
   }

   private void m4(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

      AjaxDAO dao = new AjaxDAO();

      List<AddressDTO> list = dao.listAddress();

      /*

         <?xml version='1.0' encoding='UTF-8'?>
         <list>
            <item>
               <seq>1</seq>
               <name>홍길동</name>
               <age>20</age>
               <tel>010</tel>
               <address>서울시</address>
            </item>
         </list>

      */

      resp.setContentType("text/xml");
      resp.setCharacterEncoding("UTF-8");

      PrintWriter writer = resp.getWriter();

      writer.print("<?xml version='1.0' encoding='UTF-8'?>");

      writer.print("<list>");

      for (AddressDTO dto : list) {
         writer.print("<item>");
            writer.printf("<seq>%s</seq>", dto.getSeq());
            writer.printf("<name>%s</name>", dto.getName());
            writer.printf("<age>%s</age>", dto.getAge());
            writer.printf("<tel>%s</tel>", dto.getTel());
            writer.printf("<address>%s</address>", dto.getAddress   ());
         writer.print("</item>");
      }

      writer.print("</list>");

      writer.close();

   }

   private void m3(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

      AjaxDAO dao = new AjaxDAO();

      ResearchDTO dto = dao.getResearch(1);

      resp.setCharacterEncoding("UTF-8");
      resp.setContentType("text/plain");

      PrintWriter writer = resp.getWriter();

      writer.print("<?xml version='1.0' encoding='UTF-8'?>");
      writer.printf("<question id='q1'>%s</question>"
                  , dto.getQuestion());
      writer.close();

   }

   private void m2(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

      AjaxDAO dao = new AjaxDAO();

      List<AddressDTO> list = dao.listAddress();

      //CSV
      String temp = "";

      for (AddressDTO dto : list) {
         temp += String.format("%s,%s,%s,%s,%s\r\n"
                           , dto.getSeq()
                           , dto.getName()
                           , dto.getAge()
                           , dto.getTel()
                           , dto.getAddress());
      }

      resp.setContentType("text/plain");
      resp.setCharacterEncoding("UTF-8");

      PrintWriter writer = resp.getWriter();

      writer.print(temp);

      writer.close();

   }

   private void m1(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

      AjaxDAO dao = new AjaxDAO();

      int count = dao.count();


      //서버가 브라우저(Ajax)에게 건내는 데이터 이런 형식이다~ 알려주는 작업
      resp.setContentType("text/plain"); //텍스트 형식
      resp.setCharacterEncoding("UTF-8");


      PrintWriter writer = resp.getWriter();

      writer.print(count + "");

      writer.close();

   }

}

ex07.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<link rel="stylesheet" href="https://me2.do/5BvBFJ57">
<style>

</style>
</head>
<body class="narrow">
   <!-- ex07.jsp -->

   <h1>Ajax <small>응답 데이터 형식</small></h1>

   <div>

      <h2>Text</h2>
      <input type="button" value="확인" id="btn1">
      <div id="div1"></div>

      <hr>

      <h2>XML</h2>
      <input type="button" value="확인" id="btn2">
      <div id="div2"></div>

      <hr>

      <h2>JSON(***)</h2>
      <input type="button" value="확인" id="btn3">
      <div id="div3"></div>


   </div>

<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.4/jquery.min.js"></script>
<script>

   $('').click(()=>{

      $.ajax({
         type: 'GET',
         url: '/ajax/ex07data.do',
         data: 'type=1',

         //서버가 Ajax에게 돌려주는 데이터 형식(text)
         datatype: 'text',
         success: (result)=>{
            $('#div1').text(result);
         },
         error: (a,b,c)=>console.log(a,b,c)
      });

   });

   $('#btn1').click(()=>{

      $.ajax({
         type: 'GET',
         url: '/ajax/ex07data.do',
         data: 'type=2',

         datatype: 'text',

         success: (result)=>{

            const lines = result.split('\r\n');

            lines.forEach(line=>{

               const items = line.split(',');

               $('#div1').append(
                  `
                     <div>\${items[1]} - \${items[4]}</div>
                  `
               );

            });

         },
         error: (a,b,c)=>console.log(a,b,c)
      });

   });

   $('#btn2').click(()=>{

      $.ajax({

         type: 'GET',
         url: '/ajax/ex07data.do',

         data: 'type=4',

         dataType: 'xml',

         success: (result) => {

            //$('#div2').text(result);

            //$('#div2').text( $(result).find('question').text() );
            //$('#div2').text( $(result).find('#q1').text() );

            $(result).find('item').each((index, item)=>{

               $('#div2').append(

                  `
                     <div>
                        \${$(item).find('seq').text()}
                        :
                        \${$(item).find('name').text()}
                        :
                        \${$(item).find('address').text()}
                     </div>
                  `

               );


            });


         },

         error: (a,b,c) => console.log(a,b,c)


      });

   });

   $('#btn3').click(() => {
	   $.ajax({
	     type: 'GET',
	     url: '/ajax/ex07data.do',
	     data: { type: 6 },
	     dataType: 'json',
	     success: (result) => {
	       $(result).each((index, item) => {
	         $('#div3').append(
	           $('<div>').text(item.name)
	         );
	       });
	     },
	     error: (xhr, status, error) => {
	       console.log(xhr, status, error);
	     }
	   });
	 });

</script>
</body>
</html>

■ 실행 결과

728x90

저작자표시 비영리 변경금지 (새창열림)

'Server' 카테고리의 다른 글

AJAX STEP 5 - 주소록 조회 (0)	2023.05.16
AJAX STEP 4 - ID 중복 검사 (0)	2023.05.16
AJAX STEP 2 - Push Server (0)	2023.05.15
Servlet + JSP STEP 4 - Memo (0)	2023.05.15
AJAX STEP 1 - 기초 (0)	2023.05.12

내 블로그 - 관리자 홈 전환	`Q` `Q`
새 글 쓰기	`W` `W`

글 수정 (권한 있는 경우)	`E` `E`
댓글 영역으로 이동	`C` `C`

이 페이지의 URL 복사	`S` `S`
맨 위로 이동	`T` `T`
티스토리 홈 이동	`H` `H`
단축키 안내	`Shift` + `/` `⇧` + `/`

AJAX STEP 3 - Real AJAX 구현

'Server' 카테고리의 다른 글

'Server' 카테고리의 다른 글

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역
