Spring STEP 13 - Board 2

★ 파일 생성

com.test.service > BoardService.java(I)
                 > BoardServiceImpl.java(C)

com.test.mapper > BoardMapper.java(I)
com.test.domain > BoardDTO.java

src/main/resource > com > test > mapper > BoardMapper.xml

src/test/java > com.test.board > BoardTest.java



■ DB 생성

create table tblBoard (
	seq number primary key,
    subject varchar2(1000) not null,
    content varchar2(2000) not null,
    regdate date default sysdate not null,
    id varchar2(30) not null references tblMember(id)
);



★ 코드 작성 (CRUD 기능)

• BoardService.java -> 코드 작성

@Service
public class BoardServiceImpl implements BoardService {

	@Autowired
	private BoardMapper mapper;

	//글쓰기
	int add(BoardDTO dto);

	//목록 보기
	List<BoardDTO> list();

	//상세 보기
	BoardDTO get(String seq);

	//수정 하기
	int edit(BoardDTO dto);

	//삭제 하기
	int del(String seq);

}

• BoardServiceImpl.java -> 코드 작성

@Service
public class BoardServiceImpl implements BoardService {

	@Autowired
	private BoardMapper mapper;

	//글쓰기
	public int add(BoardDTO dto) {

		return mapper.add(dto);
	}

	//목록보기
	@Override
	public List<BoardDTO> list() {

		return mapper.list();
	}

	//상세보기
	@Override
	public BoardDTO get(String seq) {

		return mapper.get(seq);
	}

	//수정하기
	@Override
	public int edit(BoardDTO dto) {

		return mapper.edit(dto);
	}

	//삭제하기
	@Override
	public int del(String seq) {
		// TODO Auto-generated method stub
		return mapper.del(seq);
	}


}

• BoardTest.java -> 코드 작성 및 실행 -> 테스트

@WebAppConfiguration
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({"file:src/main/webapp/WEB-INF/spring/root-context.xml", "file:src/main/webapp/WEB-INF/spring/appServlet/servlet-context.xml"})
@Log4j
public class BoardTest {

	@Autowired
	private BoardService service;

	/*
	@Test
	public void testAdd() {

		BoardDTO dto = new BoardDTO();

		dto.setId("cat");
		dto.setSubject("나는 고양이다");
		dto.setContent("냐옹냐옹");

		int result = service.add(dto);

		log.info(result); //1


	}
	*/

	/*
	@Test
	public void testList() {

		List<BoardDTO> list = service.list();

		for(BoardDTO dto : list) {

			log.info(dto);

		}

	}
	*/

	/*
	@Test
	public void testGet() {

		BoardDTO dto = service.get("1");

		System.out.println(dto);

	}
	*/

	/*
	@Test
	public void testEdit() {

		BoardDTO dto = new BoardDTO();

		dto.setSeq("1");
		dto.setSubject("수정한 제목입니다.");
		dto.setContent("수정한 내용입니다.");

		log.info(service.edit(dto));

		log.info(service.get("1"));

	}
	*/

	@Test
	public void testDel() {

		log.info(service.del("301"));

		log.info(service.list());

	}
}

• BoardMapper.java

public interface BoardMapper {

	int add(BoardDTO dto);

	List<BoardDTO> list();

	BoardDTO get(String seq);

	int edit(BoardDTO dto);

	int del(String seq);

}

• BoardMapper.xml

<mapper namespace="com.test.mapper.BoardMapper">

    <!-- add 기능 -->
	<insert id="add">
		insert into tblBoard (seq, subject, content, regdate, id)
			values (seqBoard.nextVal, #{subject}, #{content}, default, #{id})
	</insert>

    <!-- list 기능 -->
	<select id="list" resultType="com.test.domain.BoardDTO">
		select
			seq, subject, regdate, id
		from tblBoard
			order by seq desc
	</select>

    <!-- detail 기능 -->
    <select id="get" resultType="com.test.domain.BoardDTO">
		select
			*
		from tblBoard
			where seq = #{seq}
	</select>

    <!-- update 기능 -->
    <update id="edit">
		update tblBoard set
			subject = #{subject},
			content = #{content}
				where seq = #{seq}
	</update>

    <!-- delete 기능 -->
	<delete id="del">
		delete from tblBoard
			where seq = #{seq}
	</delete>

</mapper>



★ 실제 작업

• BoardController.java

@Controller
public class BoardController {

	@Autowired
	private BoardService service;

	@GetMapping("/board/list.do")
	public String list(Model model) {

		model.addAttribute("list", service.list());

		return "board/list";
	}

	@GetMapping("/board/add.do")
	public String add() {

		return "board/add";
	}

	@PostMapping("/board/addok.do")
	public String addok() {

		return "redirect:/board/list.do";
	}

	@GetMapping("/board/view.do")
	public String view() {

		return "board/view";
	}

	@GetMapping("/board/edit.do")
	public String edit() {

		return "board/edit";
	}

	@PostMapping("/board/editok.do")
	public String editok() {

		return "redirect:/board/list.do";
	}

	@GetMapping("/board/del.do")
	public String del() {

		return "board/del";
	}

	@PostMapping("/board/delok.do")
	public String delok() {

		return "redirect:/board/delok.do";
	}

}

• list.jsp -> 리스트들을 띄우는 페이지

<!-- list.jsp -->
<%@ include file="/WEB-INF/views/inc/header.jsp" %>

<h2>Board <small>제목</small></h2>

<table>
    <tr>
        <th>번호</th>
        <th>제목</th>
        <th>날짜</th>
        <th>아이디</th>
    </tr>
    <c:forEach items="${list}" var="dto">
    <tr>
        <td>${dto.seq}</td>
        <td><a href="/board/view.do?seq=${dto.seq}">${dto.subject}</td>
        <td>${dto.regdate}</td>
        <td>${dto.id}</td>
    </tr>
    </c:forEach>
</table>

<div>
    <button type="button" class="add" onclick="location.href='/board/add.do';">글쓰기</button>
</div>

• add.jsp -> 추가하는 페이지

<!-- add.jsp -->
<%@ include file="/WEB-INF/views/inc/header.jsp" %>

<h2>Board <small>add</small></h2>

<form method="POST" action="/board/addok.do">
<table class="vertical">
    <tr>
        <th>제목</th>
        <td><input type="text" name="subject" class="full" required></td>
    </tr>
    <tr>
        <th>내용</th>
        <td><textarea name="content" class="full" required></textarea></td>
    </tr>
</table>
<div>
    <button type="button" class="back" onclick="location.href='/board/list.do';">돌아가기</button>
    <button type="submit" class="add">글쓰기</button>
</div>
<input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}">
<input type="hidden" name="id" value='<sec:authentication property="principal.username"/>'>

</form>

• view.jsp -> 상세보기

<!-- view.jsp -->
<%@ include file="/WEB-INF/views/inc/header.jsp" %>

<h2>Board <small>add</small></h2>

<table class="vertical">
    <tr>
        <th>번호</th>
        <td>${dto.seq}</td>
    </tr>
    <tr>
        <th>아이디</th>
        <td>${dto.id}</td>
    </tr>
    <tr>
        <th>제목</th>
        <td>${dto.subject}</td>
    </tr>
    <tr>
        <th>내용</th>
        <td>${dto.content}</td>
    </tr>
    <tr>
        <th>날짜</th>
        <td>${dto.regdate}</td>
    </tr>
</table>
<div>
    <button type="button" class="back" onclick="location.href='/board/list.do';">돌아가기</button>

    <sec:authentication property="principal" var="pinfo"/>

    <sec:authorize access="isAuthenticated()">

    <c:if test="${pinfo.username == dto.id}">
    <button type="button" class="edit" onclick="location.href='/board/edit.do?seq=${dto.seq}';">수정하기</button>
    <button type="button" class="del" onclick="location.href='/board/del.do?seq=${dto.seq}';"> 삭제하기</button>
    </c:if>
    </sec:authorize>
</div>

• edit.jsp -> 수정하기

<!-- edit.jsp -->
<%@ include file="/WEB-INF/views/inc/header.jsp" %>

<h2>Board <small>edit</small></h2>

<form method="POST" action="/board/editok.do">
<table class="vertical">
    <tr>
        <th>제목</th>
        <td><input type="text" name="subject" class="full" required value="${dto.subject}"></td>
    </tr>
    <tr>
        <th>내용</th>
        <td><textarea name="content" class="full" required >${dto.content}</textarea></td>
    </tr>
</table>
<div>
    <button type="button" class="back" onclick="location.href='/board/view.do?seq=${dto.seq}';">돌아가기</button>
    <button type="submit" class="edit">수정하기</button>
</div>
<input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}">
<input type="hidden" name="id" value='<sec:authentication property="principal.username"/>'>
<input type="hidden" name="seq" value="${dto.seq}"/>
</form>

• del.jsp -> 삭제 기능

<!-- del.jsp -->
<%@ include file="/WEB-INF/views/inc/header.jsp" %>

<h2>Board <small>del</small></h2>

<form method="POST" action="/board/delok.do">
<div>
    <button type="button" class="back" onclick="location.href='/board/view.do?seq=${seq}';">돌아가기</button>
    <button type="submit" class="del">삭제하기</button>
</div>
<input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}">
<input type="hidden" name="id" value='<sec:authentication property="principal.username"/>'>
<input type="hidden" name="seq" value="${seq}"/>
</form>





■ 권한 체크 : 접근 할 수 없는 페이지 막기

---------------- 인증 사용자만 접근 가능 -------------
- add.do, addok.do
- edit.do, editok.do
- del.do, delok.do

• security-context.xml -> 작성 : 하지만, 일일히 해줘야 해는 노가다 작업임..

방법 1
<!-- <security:intercept-url pattern="/board/add.do" access="isAuthenticated()" /> -->
방법 2
<!--  <security:intercept-url pattern="/board/add.do" access="hasRole('ROLE_MEMBER')" />-->

• servlet-context.xml -> namespace -> security체크 -> 코드작성

<security:global-method-security pre-post-annotations="enabled"/>

• BoardController.java -> 추가

감추고자 하는 요소에
@PreAuthorize("isAuthenticated()")
이것을 추가
@GetMapping("/board/del.do")
public String del(Model model, String seq) {

    model.addAttribute("seq", seq);

    return "board/del";
}



■ 실행 결과

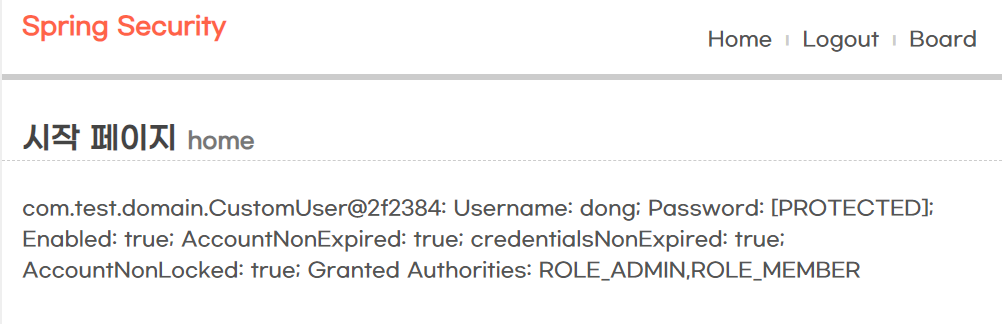

• home

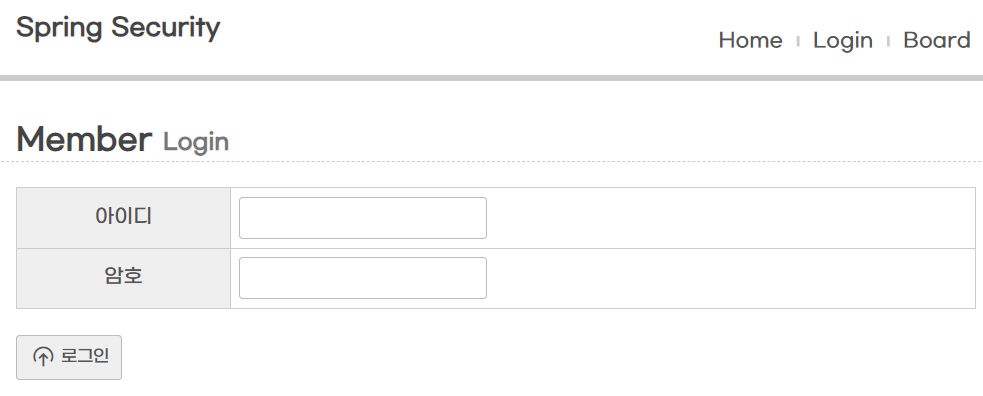

• Login

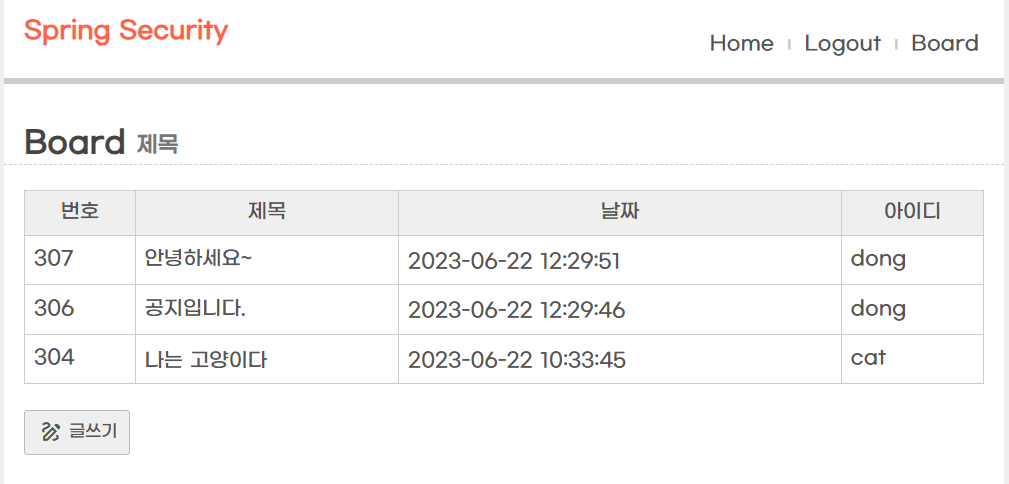

• Board -> list

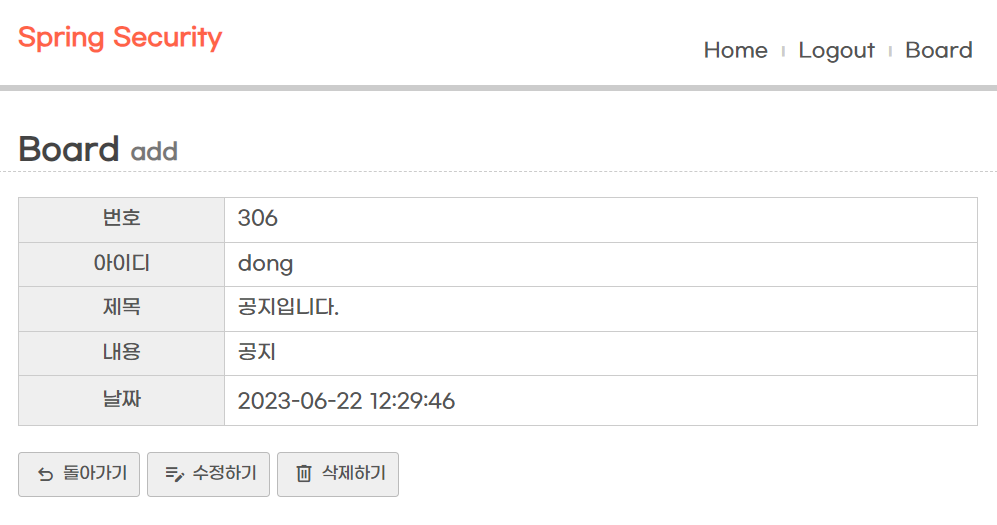

• Board -> view

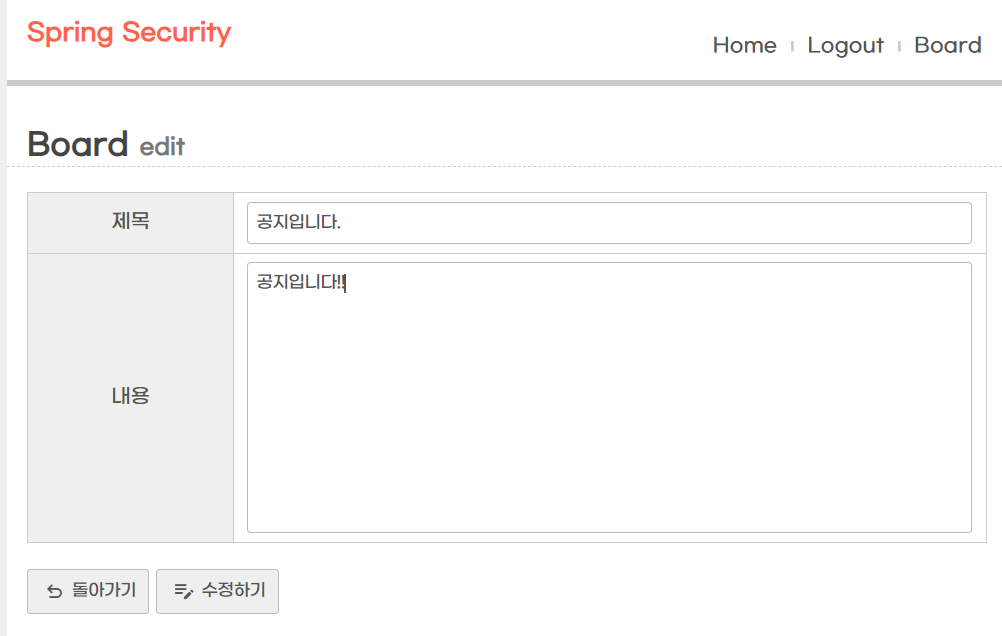

• Board -> view -> edit

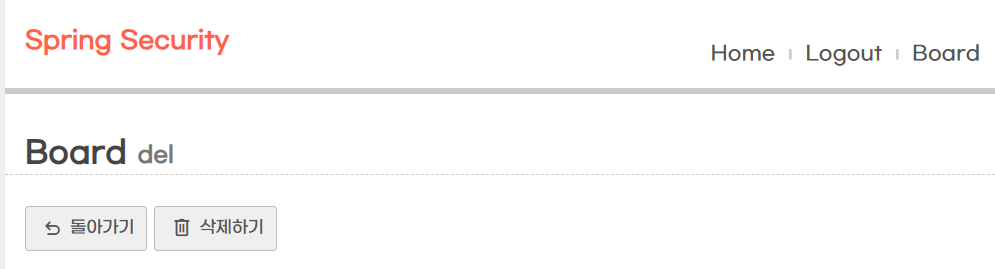

• Board -> view -> del
